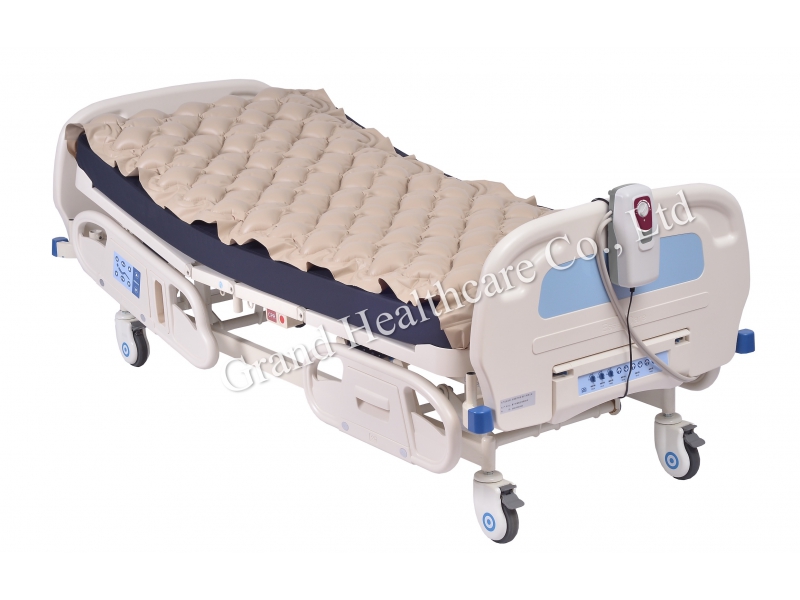

Aries APP
Alternating Air Mattresses
- Designed as an economic prevention for patients at low risk of pressure ulcer
- Disperses pressure away from bone prostrusion via alternating pressure
- Utilizes 130 individual bubble cells that are made of durable elastic medical PVC to provide maximum comfort
| Pump | I | II | IV | V (ECO) | V plus |
|---|---|---|---|---|---|
| Weight Setting Control | Dial | ||||
| Dimension | 27 x 12 x 11.5 cm | 24 x 11 x 10.5 cm | 26.5 x 12 x 11 cm | 26 x 11 x 9.5 cm | 26 x 12 x 10.5 cm |
| Weight | 1.3kg | 1.3kg | 1.4kg | 0.9 kg | 1.4 kg |
| Air Output | 5 liter/min | ||||
| Case Material | Flame Retardant Abs | ||||
| Pressure Range | 40 - 100 mmHg | 45 - 110 mmHg | 40 - 100 mmHg | ||
| Cycle Time | 10 - 12 min | ||||
| Power Supply | AC 230V/50 Hz ; 120V/60 Hz | ||||
| Mattress | Effect 2500 | Effect 2500V | Effect 2500F | Effect 2500VF |
|---|---|---|---|---|
| Inflated Dimension | 200 X 90 X 6.5 cm | |||
| Alternating | A/B Alternating | |||
| Structure | 2.5'' x 130 Bubble Cells | |||
| Low Air Loss | - | YES | - | YES |
| End Flaps | - | - | YES | YES |
| Color | Beige/Sky Blue/Dark Blue/Green | |||
| Weight Capacity | 110 kg | |||
| Flame Retardant Standards | CA 117 | |||
| Material | Medical Grade PVC | |||
Pressure Adjust Knob
End Flaps
Optional Low Air Loss
- Easily adjust pressure to the desire range
End Flaps
- Assist in Fixation of the pad on the medical bed
Optional Low Air Loss
- Ventilated Microholes on the surface of the mattress to constant air flow
