Scorpio Replacement

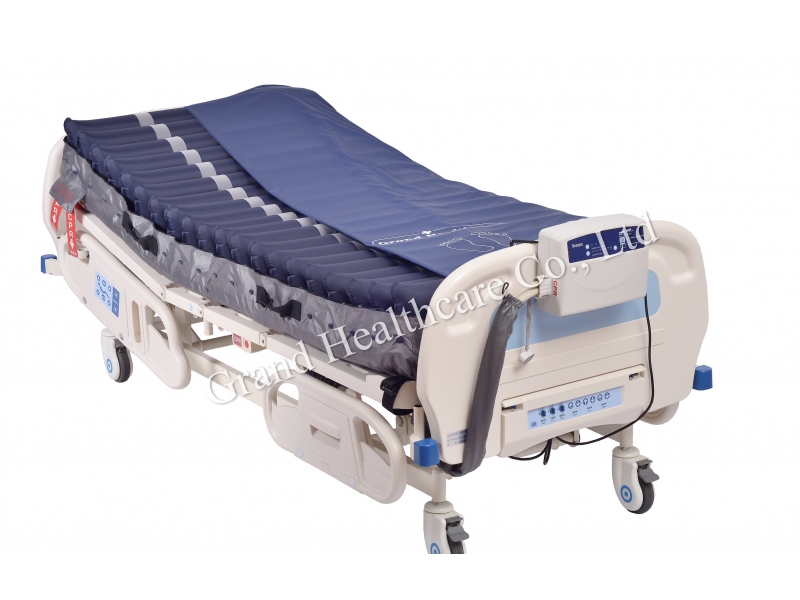

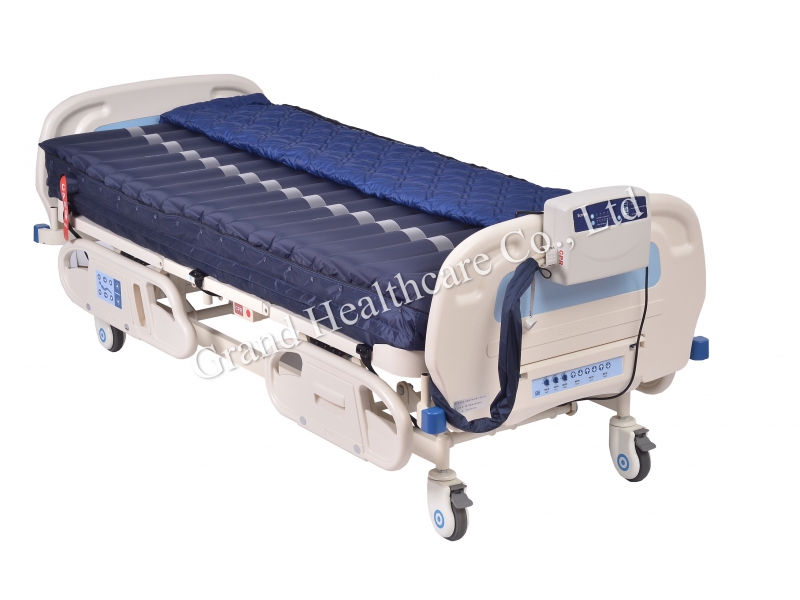

Alternating Air Mattresses
- Designed as a cost-effective treatment of pressure injuries at all stages.
- Features a range of function including: A/B alternating, static, adjustable cycle time, and max firm mode.
- 20 air cells mattress design can incorporate optional low air loss function to deliver a comfortable therapy experience
- Utilized water-resistant and vapor permeable Bi-elastic Nylon/PU top cover to reduce skin shear and friction.
| Pump | |
|---|---|
| Weight Setting Control | Digital |
| Dimension | 28 x 20 x 10 cm |
| Weight | 2.5 kg |
| Air Output | 8 liter/min |
| Case Material | Flame Retardant Abs |
| Pressure Range | 20-70 mmHg |
| Cycle Time | 10/15/20/25 min |
| Power Supply | AC 230V/50 Hz ; 120V/60 Hz |
| Mattress | Effect 8410 | Effect 8600 |
|---|---|---|
| Inflated Dimension | 203 x 88 x 20 cm | |
| Alternating | A/B Alternating | |
| Structure | 20 x 8" Cell on Cell | |
| Cover Material | Bi-elastic Nylon/PU Coating with Zipper or Nylon/PU Quilted with Zipper | |
| Cell Material | Nylon/TPU | TPU |
| Base Material | Durable Nylon/PVC 840D | |
| Maximum Weight Capacity | 180 kg | |
| Flame Retardant Standards | BS 6807 Crib 5 / BS 7157 Crib 5 | |
Quick Connector with Cap
CPR function
Pillow Function
Round Cell-on-Cell Bladder
- Ensures Mattress remains inflated during power outage or patient transport
CPR function
- Allows rapid deflation in case of medical emergencies.
- Designed for one handed operation
- Positioned at head end
Pillow Function
- Head zone comprised of three fully inflated static air cells to provide patient comfort.
Round Cell-on-Cell Bladder
- Unique two-layer cell structure provides both alternation therapy and constant support in case of power-outage or transportation
