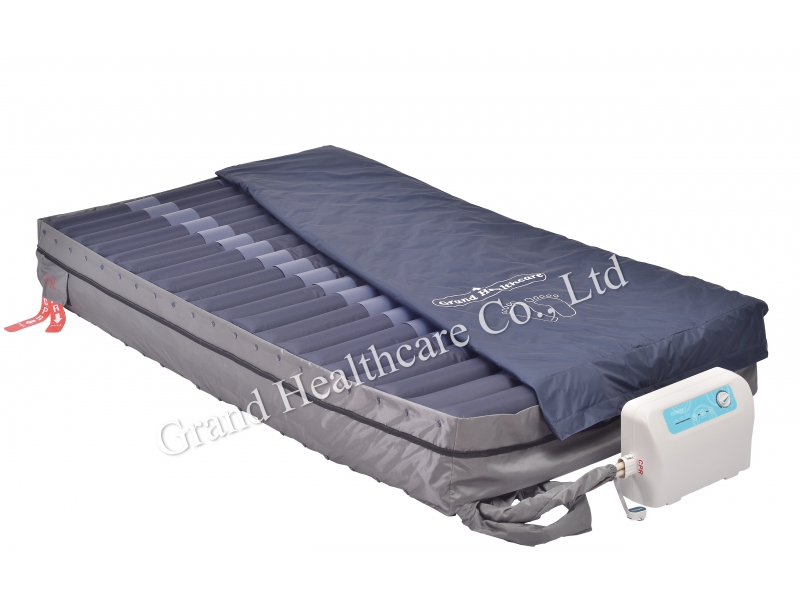

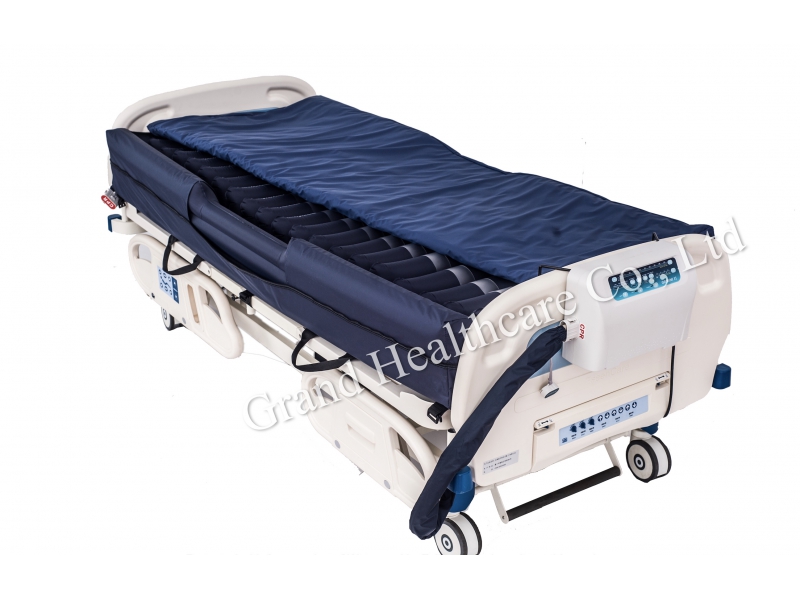

Gemini Bariatric

Alternating Air Mattresses

gemini ii watermarked
gemini I with watermarked
  • Designed to provide preventation of pressure injuries for clinically obese patients.
  • Features auto-sensing technology, automatically adjust mattress air pressure in accordance to patient's weight.
  • Seat Inflate mode gives additional support on sacrum area in sitting-up position
  • Max Firm mode allows rapid mattress inflation for immediate patient access.
  • Intuitive digital display and integrated aduio alarm made it convenient for caregivers to detect problems in any environment
  • Utilized water-resistant and vapor permeable Bi-elastic Nylon/PU top cover to reduce skin shear and friction.
PumpAutoIII
Weight Setting ControlAutoDigital
Dimension33 x 10.5 x 24 cm
Weight3.4 kg
Air Output12 liter/min
Case MaterialFlame Retardant Abs
Pressure Range20-65 mmHg20-65 mmHg30-60 mmHg
Cycle Time10/15/20/25 min
Power SupplyAC 230V/50 Hz ; 120V/60 Hz
MattressEffect 10421Effect 10422Effect 10423
Inflated Dimension203 x 106 x 26 cm203 x 120 x 26 cm203 x 135 x 26 cm
AlternatingA/B Alternating
Structure20 x 10" Cell on Cell
Cover MaterialBi-elastic PU coating cover with Zipper
Cell MaterialNylon/TPU
Base MaterialDurable Nylon/PVC 840D
Maximum Weight Capacity400 kg
Flame Retardant StandardsCA117
Quick Connector with Cap
  • Ensures Mattress remains inflated during power outage or patient transport

CPR function
  • Allows rapid deflation in case of medical emergencies.
  • Designed for one handed operation
  • Positioned at head end

Pillow Function
  • Head zone comprised of three fully inflated static air cells to provide patient comfort.

Square Cell-on-Cell Bladder
  • Unique two-layer cell structure provides both alternation therapy and constant support in case of power-outage or transportation

Heel Function
  • Provides single air cell deflation to float the heels with zero pressure.

Spring-loaded Tube
  • Spring are emplaced within air tubes to prevent unnecessary bending of tubes and ensure consistent airflow.
