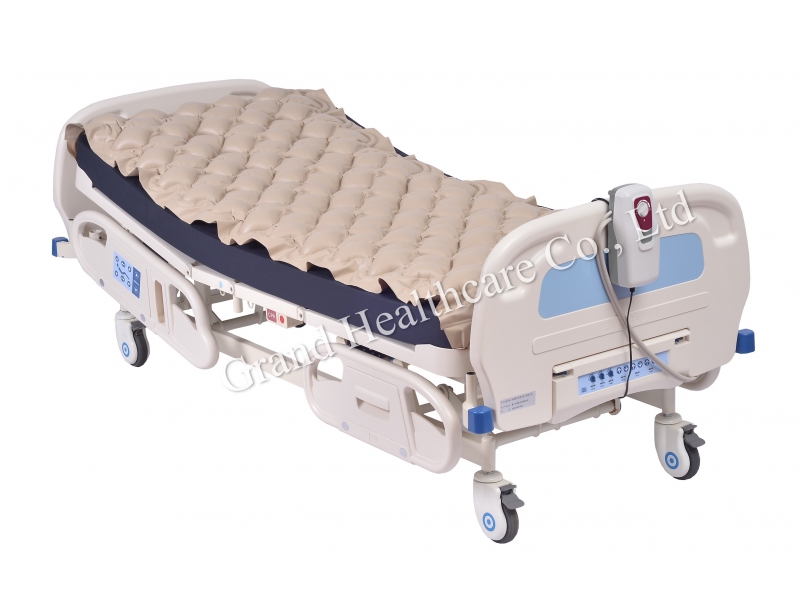

Aries APP

Alternating Air Mattresses

alternating air pad
  • Designed as an economic prevention for patients at low risk of pressure ulcer
  • Disperses pressure away from bone prostrusion via alternating pressure
  • Utilizes 130 individual bubble cells that are made of durable elastic medical PVC to provide maximum comfort

PumpIIIIVV (ECO)V plus
Weight Setting ControlDial
Dimension27 x 12 x 11.5 cm24 x 11 x 10.5 cm26.5 x 12 x 11 cm26 x 11 x 9.5 cm26 x 12 x 10.5 cm
Weight1.3kg1.3kg1.4kg0.9 kg1.4 kg
Air Output5 liter/min
Case MaterialFlame Retardant Abs
Pressure Range40 - 100 mmHg45 - 110 mmHg40 - 100 mmHg
Cycle Time10 - 12 min
Power SupplyAC 230V/50 Hz ; 120V/60 Hz

MattressEffect 2500Effect 2500VEffect 2500FEffect 2500VF
Inflated Dimension200 X 90 X 6.5 cm
AlternatingA/B Alternating
Structure2.5'' x 130 Bubble Cells
Low Air Loss-YES-YES
End Flaps--YESYES
ColorBeige/Sky Blue/Dark Blue/Green
Weight Capacity110 kg
Flame Retardant StandardsCA 117
MaterialMedical Grade PVC

Pressure Adjust Knob
  • Easily adjust pressure to the desire range

End Flaps
  • Assist in Fixation of the pad on the medical bed

Optional Low Air Loss
  • Ventilated Microholes on the surface of the mattress to constant air flow
