Non-Powered Hybrid System

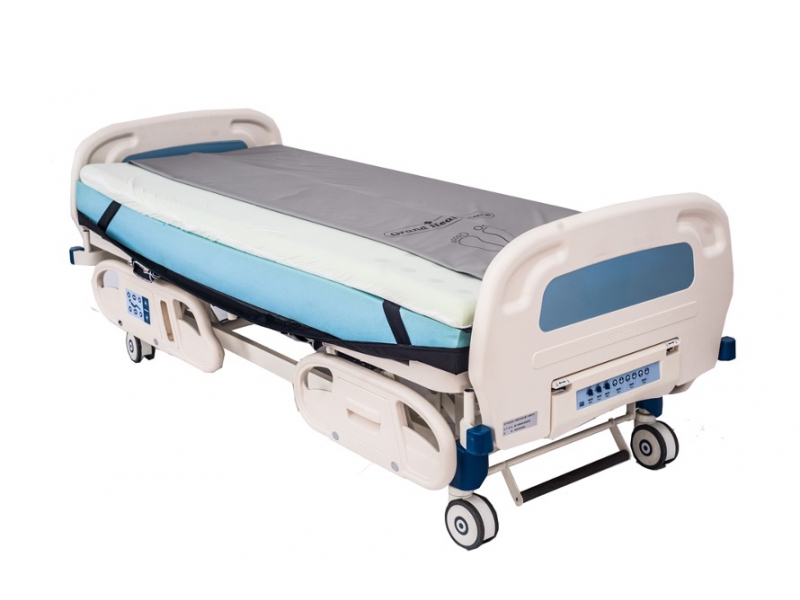

Hybrid Mattress
- Designed as a non-powered hybrid foam air combination pressure redistribution system
- Utilized patient weight and movement to distribute internal air pressure amongst cells to maintain low surface pressure
- Incorporated a foam core, with 10 transverse air cells divided into three zones - head (3 cells), torso (3 cells), legs (4 cells). Each cell contains foam insert.
- Interconnected by system of air tubes and regulators
- Comes with multi-stretch vapor permeable top cover, with option to be anti-bacterial
| Mattress | Project 2 |
|---|---|
| Inflated Dimension | 2000 x 850 x 200 mm |
| Maximum Weight Capacity | 230 kg |
| Number of Cells | 10 |
| Control System | Non-Power |
| Cell Foam Insert Material | High resillience polyurethane |
| Mattress Air Supply Line | Heavy Duty PVC pipping |
| Base Material | PVC laminated polyester |
| Air Cell Material | TPU with castellated high resillience foam insert |
| Top Cover Material | PU laminated nylon (multi-stretch) |
Air Foam Combination
Multi-Stretch Top Cover
- Design with air cells and foam combination to deliver pressure relief effect and provide comfort and support
- Foams are inserted within the air cells to mimic patient movement and deliver pressure redistribution
Multi-Stretch Top Cover
- Utilized multi-stretchable top cover that is vapor permeable and has the option to be anti-microbial
