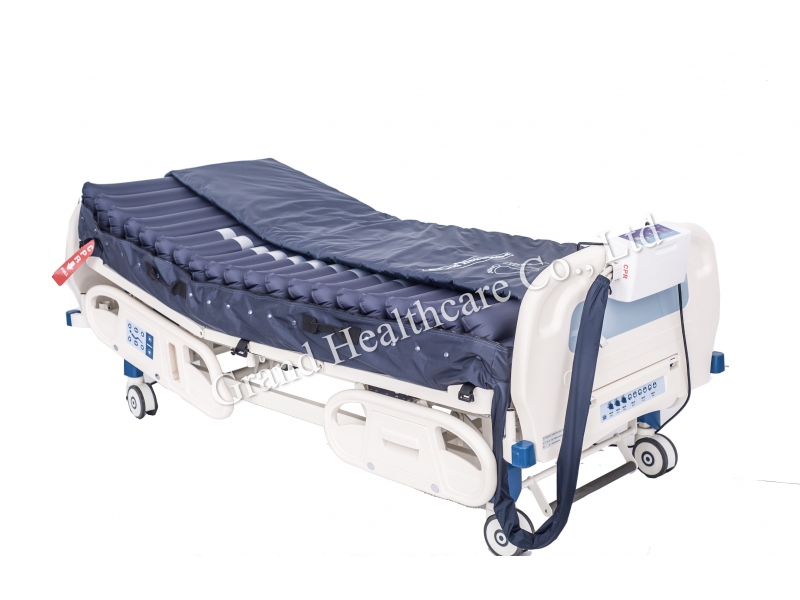

Aquarius Overlay

Alternating Air Mattresses

aqua with watermark
  • Designed to provide active alternating pressure redistribution and static low-pressure reduction
  • Features LED weight setting display that allows caregiver to easily operate the system in any environment
  • Consists of 17 air cells mattress system that cna incorporate optional low air loss function to deliver comfortable and effective therapy.
  • 5-inch air cells are constructed from Nylon/TPU material, which is durable and provides additional comfort for patients.
  • The system includes a Bi-elastic PU coating cover that has anti-bacterial properties and is durable under high temperature washing.

PumpIIIIII
Weight Setting Control Digital
Dimension27 x 15.5 x 10 cm
Weight1.6kg
Air Output8 liter/min
Case MaterialFlame Retardant Abs
Pressure Range20-55 mmHg
Cycle Time10 min
Power SupplyAC 230V/50 Hz ; 120V/60 Hz

MattressEffect 5400Effect 5600Effect 5413
Inflated Dimension203 x 90 x 12.7 cm203 x 90 x 12.7 cm + 7.6 cm foam pocket
AlternatingA/B Alternating
Structure17 x 5" Cells
Cover MaterialBi-elastic Nylon/PU Quilted with Zipper or Nylon/PU Quilted with Zipper
Cell MaterialNylon/TPUTPUNylon/TPU
Base MaterialDurable Nylon/PVC 840D
Maximum Weight Capacity160 kg180 kg
Flame Retardant StandardsBS 6807 Crib 5 / BS 7157 Crib 5CA117 / CFR 1632

Quick Connector with Cap
  • Ensures Mattress remains inflated during power outage or patient transport

CPR function
  • Allows rapid deflation in case of medical emergencies.
  • Designed for one handed operation
  • Positioned at head end

Pillow Function
  • Head zone comprised of three fully inflated static air cells to provide patient comfort.

Foam Pocket
  • The unique design allows user to install an additional foam as an effective pressure support base.
